Denys Mitchell Key Takeaways
- Whirlpool dryer codes split into four groups — control, temperature, heat and communication — and codes from different groups almost never share a repair.
- F4E3 is an open heating element and F4E1 is a failed heater relay; both look identical from the laundry room and need different parts.
- A burned-out element cannot be reset and is replaced together with the thermal fuse.
- F3E1 and F3E2 are the exhaust and inlet thermistors, and a restricted vent makes both codes more likely, so check the duct before replacing a sensor.
- F6E2 and F6E3 are board-to-board communication faults in opposite directions and deserve one breaker reset before anything else.
The Bottom Line
Find the group first: heat, temperature, control or communication. Vent restriction sits behind more F3 and F4 codes than any failed part does, and it is the one cause a homeowner can fix in an afternoon.
A dryer that stops and shows a pair of characters is not being cryptic on purpose. Whirlpool dryers group faults the same way the dishwashers do: an F number names the system, an E number names the failure inside it. Once you know which system a code belongs to, half the diagnosis is done. This whirlpool dryer error code list sorts the pairs into the four groups that matter — control, temperature, heat and communication — because codes from different groups almost never share a repair.
| Code | Group | What the control detected |
|---|---|---|
| F1E1 | Control | Main control board failure |
| F1E3 | Control | Motor control unit fault |
| F2E1 | Control | Stuck keypad button |
| F2E2 | Control | User interface board mismatch |
| F3E1 | Temperature | Exhaust thermistor open |
| F3E2 | Temperature | Inlet thermistor shorted |
| F4E1 | Heat | Heater relay fault |
| F4E3 | Heat | Heating element open |
| F6E2 | Communication | Main board to user interface |
| F6E3 | Communication | User interface to main board |
F4E3 and F4E1: The Dryer Runs but Nothing Dries

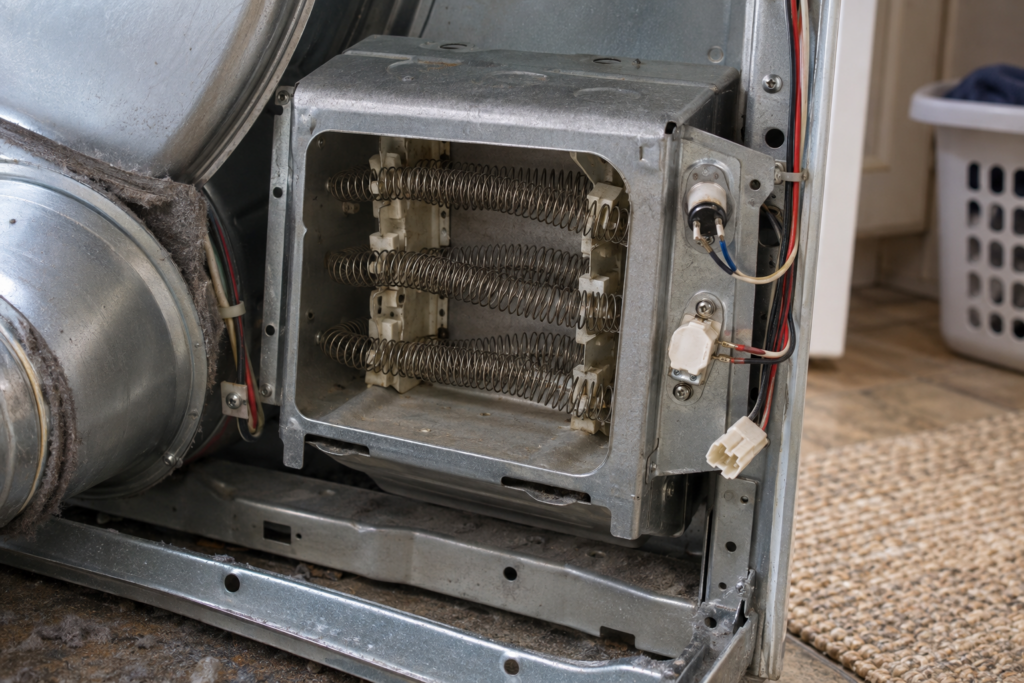

This is the pair behind the most common complaint of all. F4E3 means the heating element has an open circuit — a physical break in the resistive coil. F4E1 means the relay that switches power to that element has failed, so the element may be perfectly healthy and simply never energized.
From the laundry room they look identical: the drum turns, the timer counts down, and the clothes come out cool and damp. A burned-out element cannot be reset, and on these machines it is replaced together with the thermal fuse, because the condition that killed one usually stressed the other. Our page on the Whirlpool dryer F4E3 error covers what that repair involves, and the no-code version of the same symptom is in our guide to a Whirlpool dryer not heating.
F3E1 and F3E2: The Thermistors
A thermistor is a temperature sensor whose resistance changes with heat. There are two on these dryers, and they report from different places. The exhaust thermistor watches the air leaving the drum; the inlet thermistor watches air on the way in. F3E1 says the exhaust sensor reads open, F3E2 says the inlet sensor reads shorted.
Thermistor codes deserve a word about venting, because a restricted vent produces exactly the readings that make these codes more likely. Before anyone replaces a sensor, the vent run is worth checking — it is the cheapest possible fix and the one most often skipped. The F3E1 exhaust thermistor page goes through the circuit itself.
- Pull the dryer out and check the flexible duct for a crush behind the machine.
- Look at the outside hood on a windy day — a flap that no longer opens is a blocked run.
- Clean the full vent line yearly, not just the lint screen.
- Shorten the duct if you can. Every extra foot and every elbow costs airflow.
- Treat lint at the outlet as a warning. Restricted venting is a fire matter before it is a code matter.
F1E1, F1E3 and F2E2: Boards Rather Than Parts
F1E1 is a main control board failure. F1E3 is a motor control unit fault — a separate board that drives the motor, so the symptom is usually a drum that will not turn rather than one that will not heat. F2E1 is a stuck keypad button, and like every keypad code it often shows itself first as phantom beeps or a cycle that starts on its own.
F2E2 is the odd one. A user interface board mismatch means the machine found an interface board it does not recognize as belonging with the main board. In practice that points at a recent part replacement or a connection that has worked loose, rather than at wear. It is one of the few codes on this list where the most useful question is not what failed but what changed, so it is worth asking whether anyone has been behind the machine recently.
F6E2 and F6E3: Direction Matters
These two look like the same fault and are not quite. F6E2 is a communication failure from the main board toward the user interface; F6E3 is the failure in the opposite direction. Both mean two boards that should be talking are not, and both are worth one power cut at the breaker before anything else, because a brownout can latch this state without damaging anything.
- Cut power at the breaker for five minutes. Not at the start button — at the panel.
- Restore power and run a short timed cycle with the drum empty.
- Note whether the code returns immediately or after several loads.
- Check the vent before assuming electronics if the code is anywhere in the F3 or F4 group.
- Stop at any smell of hot insulation and leave the breaker off.
Getting It Checked
Vent cleaning and lint screen care are homeowner jobs and they prevent more codes than any other habit. The heating element, the relay, the thermistors and the boards all sit behind panels carrying line voltage, which is where the job stops being a homeowner one. Our Whirlpool dryer repair service covers the whole heat and control chain in one visit.
Heating element work on these dryers starts from $190, and a diagnostic visit starts from $89. The final price is confirmed after the on-site diagnosis, and a written estimate comes before any work begins. Book a visit or send us the code along with whether the drum turns, which narrows it further than the code alone.
